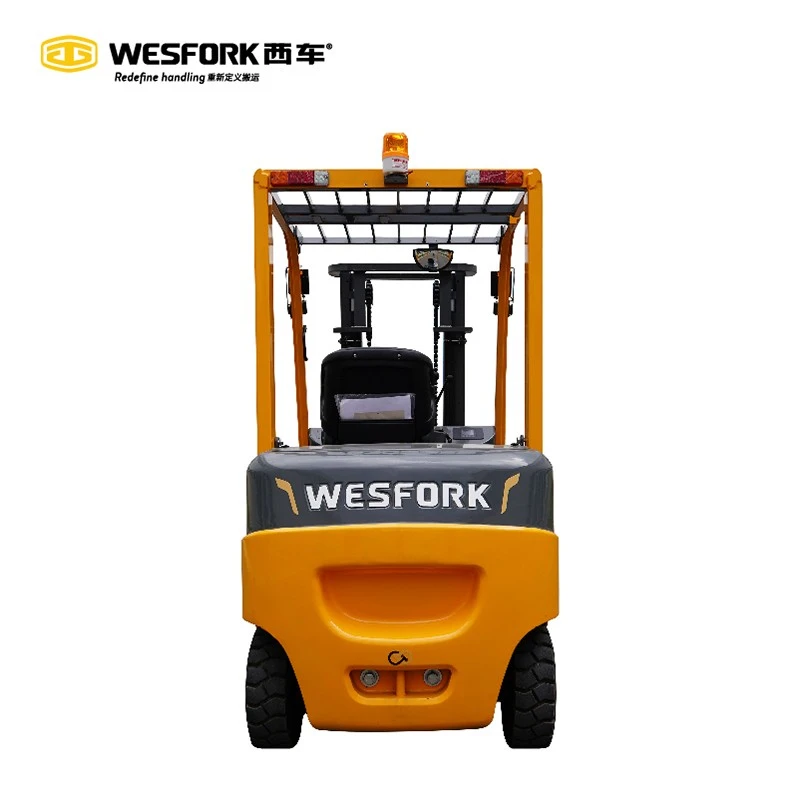

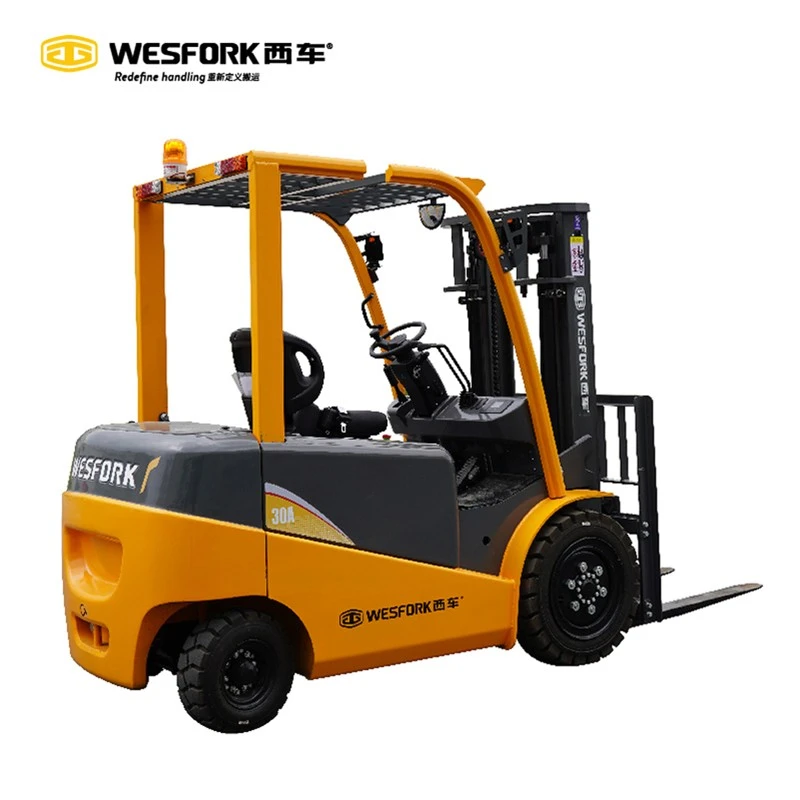

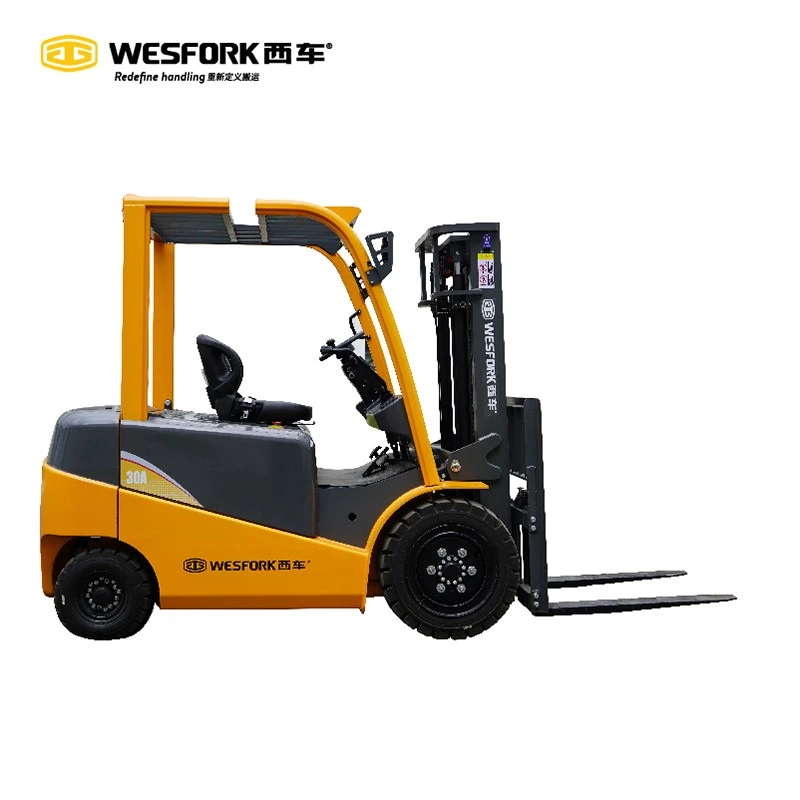

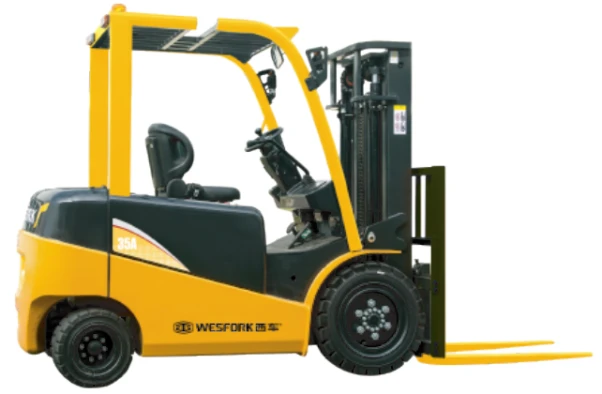

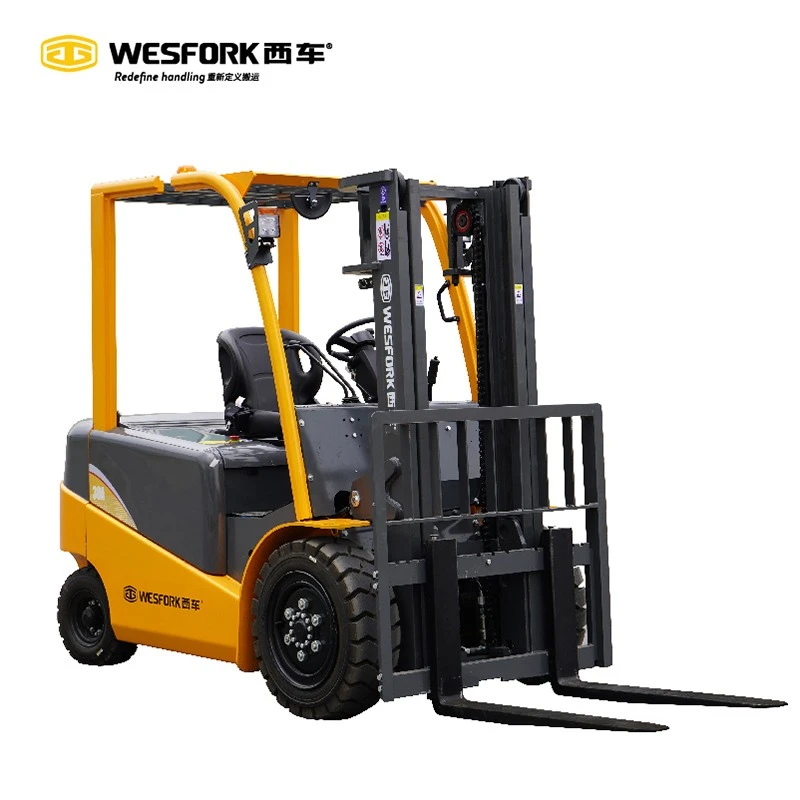

3.5 Ton Counterbalance Forklift

FB35ALi

• 3.5 ton electric counterbalanced forklifts are currently the most stable main tonnage in the industrial vehicle market. The rated load precisely covers the in-plant handling needs for the majority of palletized goods (raw materials, semi-finished products, complete palletized finished products).
• Battery platform: Mainly adopts 80V high-voltage platform, with capacities ranging from 210Ah to 560Ah available. Lithium iron phosphate battery is maintenance-free and supports 1-hour fast charging.
• Motor and control: Dual AC asynchronous motors (for movement + lifting), IGBT control, smooth starting at zero speed with full torque
• Range: Standard battery lasts 6–8 hours per shift; large-capacity version can support multi-shift continuous operation, and can be revived with a quick charge during lunch break
• Protection level: Core components are IP67, the entire vehicle is IPX4. Some models have passed -20℃ low-temperature tests and rain tests, and can be used both indoors and outdoors.

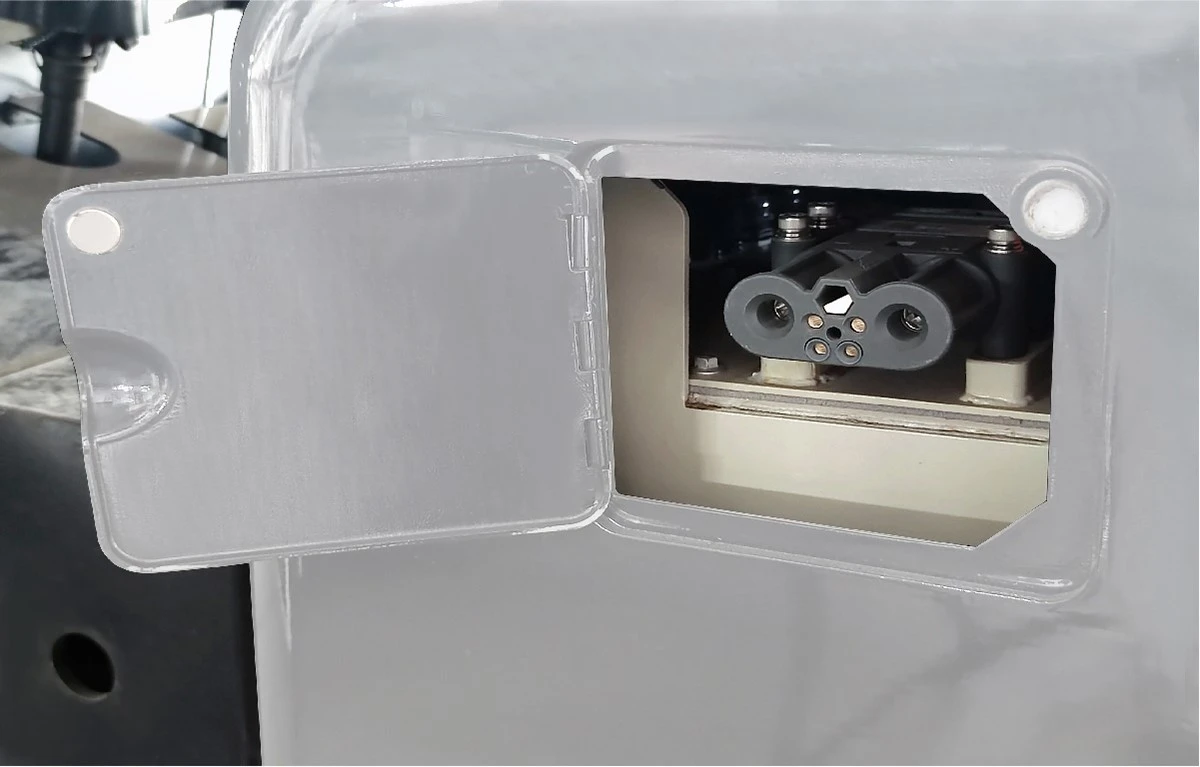

Charging port design

3.5 ton counterbalance forklift,Equipped with a flip-cover protective charging port, the compartment cover is closed during operation to prevent dust and debris from entering; the dedicated highpower connector ensures stable contact and supports fast charging, reducing charging wait time, ensuring the power supply safety of the entire vehicle, and improving the reliability of forklift use

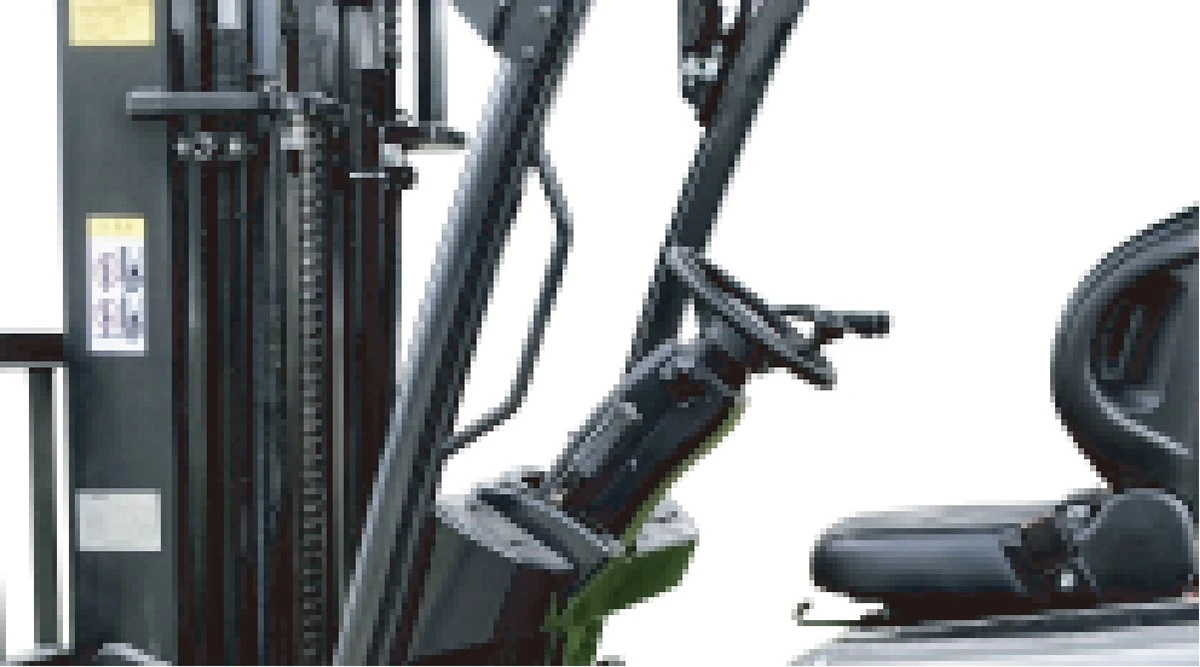

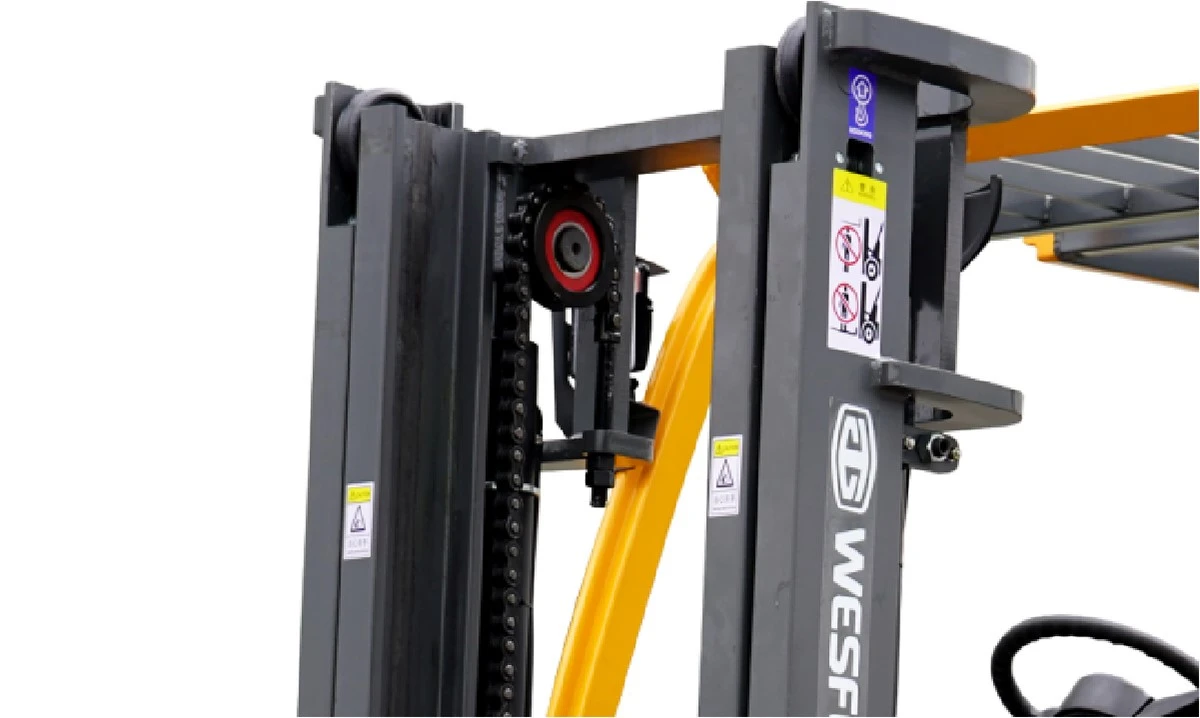

High-strength chain

The chain links undergo overall quenching and tempering (quenching + high-temperature tempering) as well as surface carburizing or induction quenching. The core maintains high toughness (resistant to impact), while the surface hardness reaches HRC 35–45, significantly enhancing wear resistance.
