RS20

Advantage

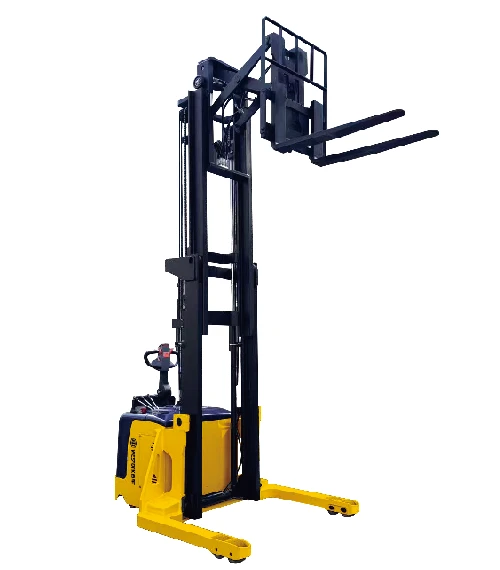

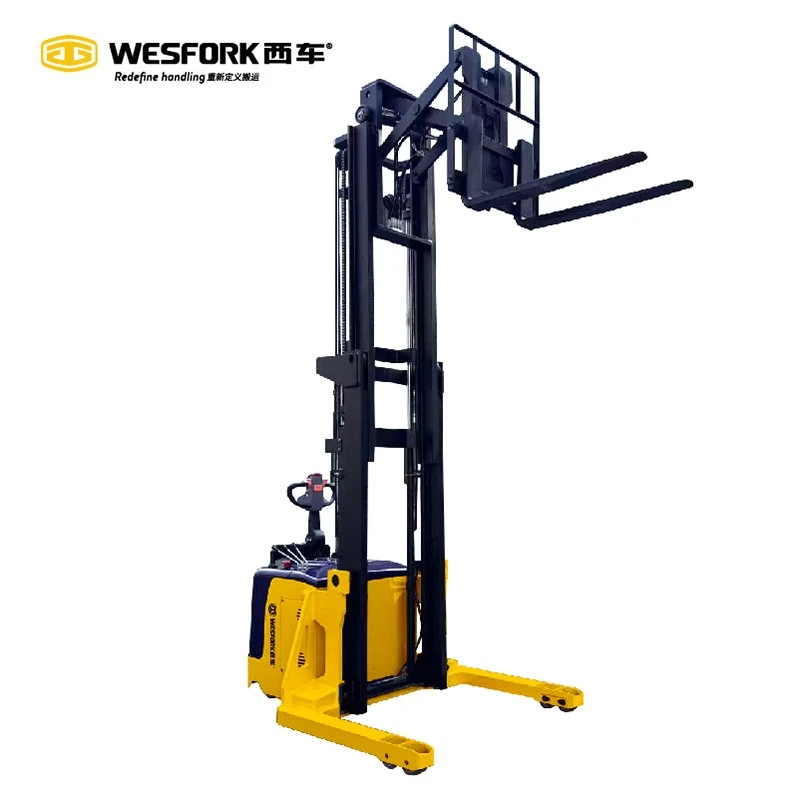

Strong space adaptability: 1.6t Ride on Single Scissor Li-ion Reach Truck,When the forks extend, they can handle non-standard pallets. When retracted, they transform into a cross-legged style, enabling smooth movement in extremely narrow passages.
High load capacity and high lifting: The mast is rigidly connected to the guard frame, with the center of gravity shifted backward, supporting ultra-high stacking of up to 8.5 to 10 meters without losing stability.
Efficient lithium battery operation: Using lithium battery, it supports fast charging, and the AC motor is maintenance-free, significantly reducing long-term usage costs.

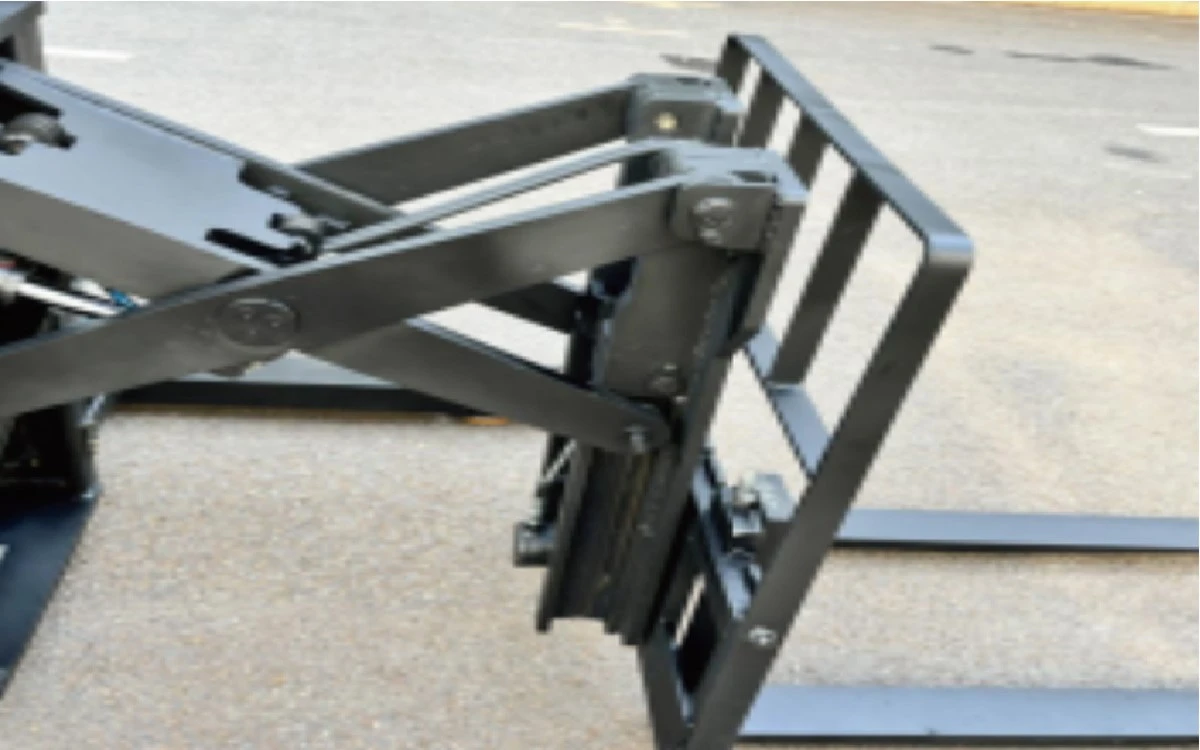

Strengthened single-pivot design

1.6t Ride on Single Scissor Li-ion Reach Truck,Additional diamond-shaped/elliptical reinforcing plates are installed at the central hinge point and the end hinge point. The long axis of these plates is arranged at an angle along the length of the fork beam, and they are distributed in a wavy pattern along the direction of stress transmission.

RS20-02

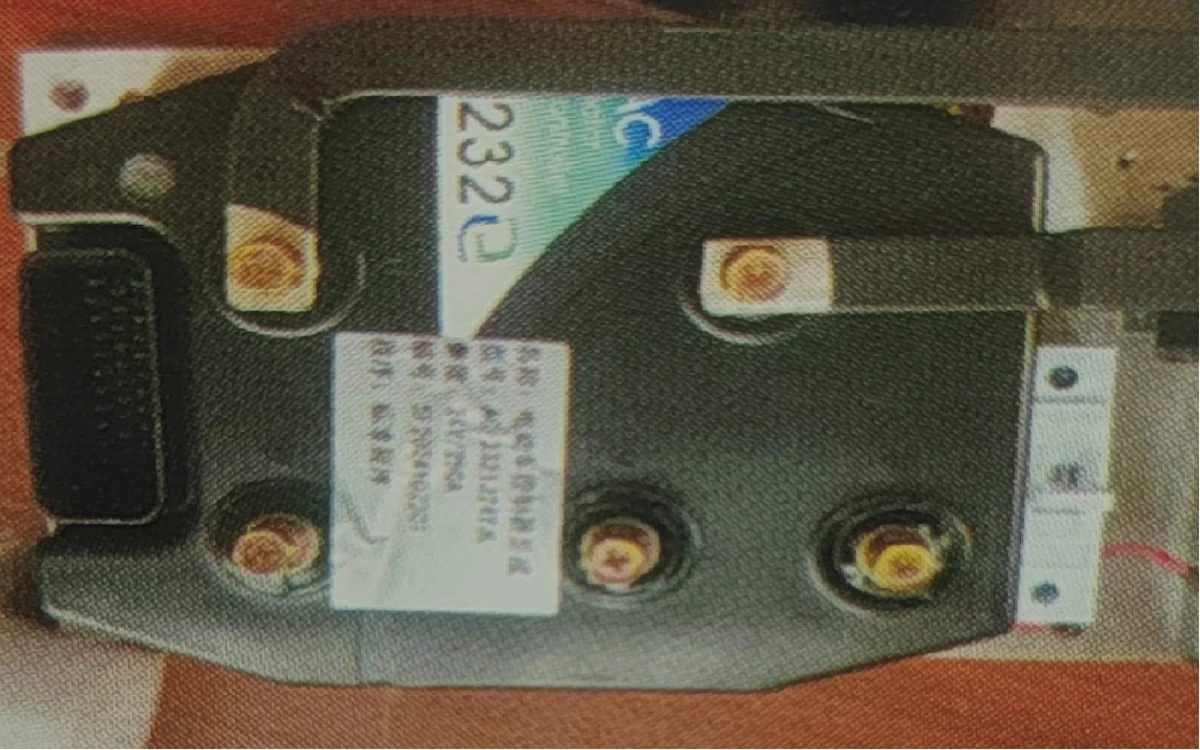

American Curtis Controller

Specialized controller for electric forklifts, featuring smooth power output and rapid speed response. It integrates multiple protections such as overcurrent, overvoltage, overheating, with strong anti-interference performance to ensure stable starting, stopping, and reversing of the forklift, making it suitable for frequent operating conditions.

RS20-03

High-strength gantry design

1.6t Ride on Single Scissor Li-ion Reach Truck,The outer gantry is designed as a cantilever beam, while the inner gantry/fork frame is a moving load-bearing component

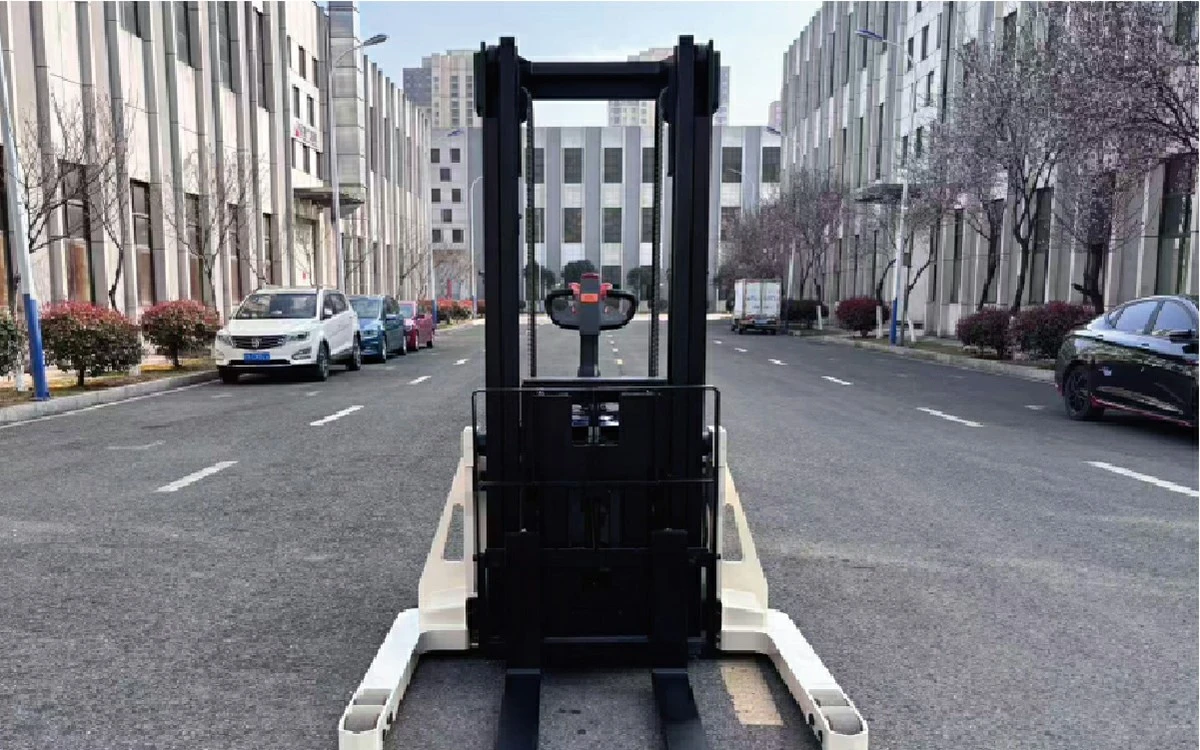

RS20-04

Aesthetically pleasing

The vehicle structure is stable, the weight distribution is reasonable, and the operation is smooth. The compact body layout offers strong site adaptability, reliable performance core components, and a good operating experience, making it suitable for high-intensity handling in various warehousing and logistics scenarios.

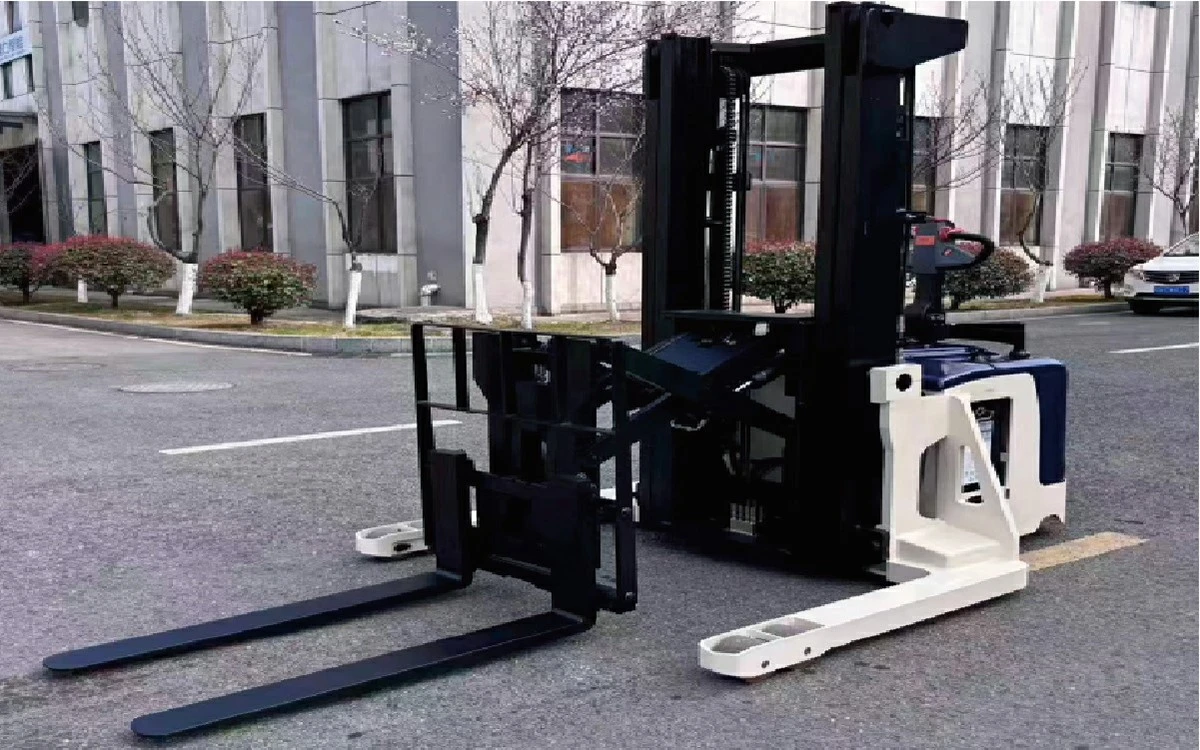

RS20-05
